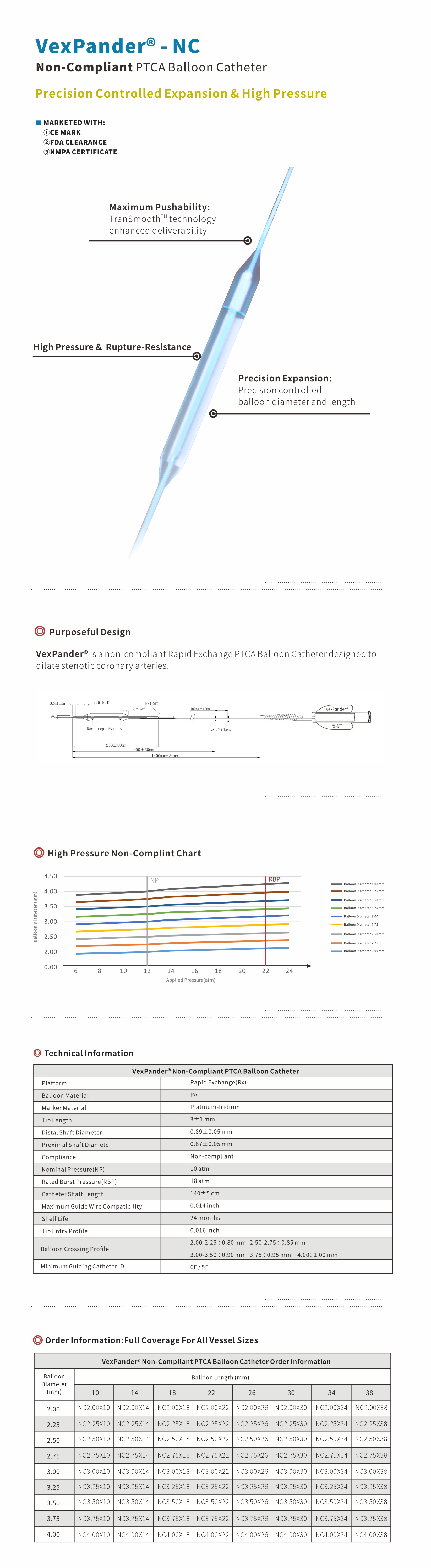

VexPander® NC PTCA Balloon Catheter
Brand: VexPander®
Certification: CE, FDA, NMPA
Supply capacity: 500/day
VexPander® Design Features:
-Precision Expansion: Precision controlled balloon diameter and length expansion, making the vessel dilated as wanted.
-High Pressure & Rupture-Resistant: Endured high pressure(>20 Bars) and Rupture-Resistant design making the device more safe during dilatation.
-Excellent Crossability: minimum intro-profile making the device easy use in small vessel.
-Maximum Pushability: TranSmooth design make the device having maximum pushablility.

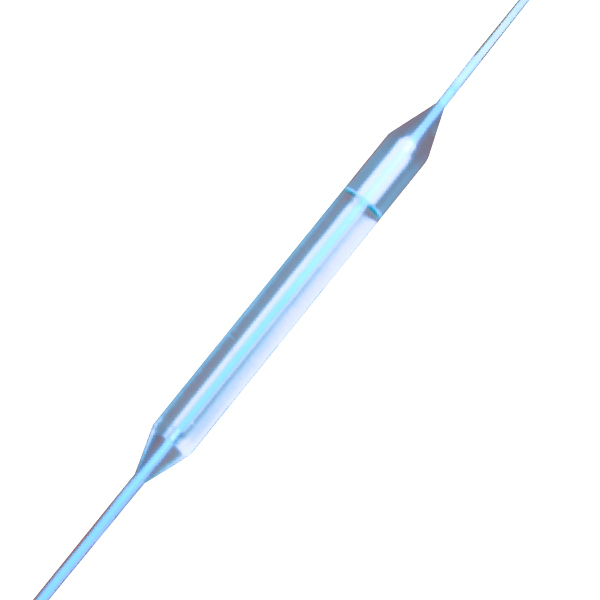

VesPander® NC PTCA Balloon Catheter is a non-compliant Rapid Exchange PTCA Balloon Catheter designed to dilate the stenotic coronary artery disease.
VexPander® Design Features
Non-compliant Balloon Catheter: designed specifically for Pre DEB and post stenting dilatation.
Precision Expansion: Precision controlled balloon diameter and length expansion, making the vessel dilated as wanted.
High Pressure & Rupture-Resistant: Endured high pressure(>20 Bars) and Rupture-Resistant design making the device more safe during dilatation.
Excellent Crossability: minimum intro-profile making the device easy use in small vessel.
Maximum Pushability: TranSmooth design make the device having maximum pushablility.
Order Information
40 Sizes Available | 0.75 – 1.75 mm Diameters | 10 – 38 mm Lengths
VexPander® Semi-Comp PTCA Balloon Catheter | ||||||||
Balloon Diameter (mm) | Balloon Length（mm） | |||||||
10 | 14 | 18 | 22 | 26 | 30 | 34 | 38 | |
2.00 | NC2.00x10 | NC2.00x14 | NC2.00x18 | NC2.00x22 | NC2.00x26 | NC2.00x30 | NC2.00x34 | NC2.00x38 |
2.25 | NC2.25x10 | NC2.25x14 | NC2.25x18 | NC2.25x22 | NC2.25x26 | NC2.25x30 | NC2.25x34 | NC2.25x38 |
2.50 | NC2.50x10 | NC2.50x14 | NC2.50x18 | NC2.50x22 | NC2.50x26 | NC2.50x30 | NC2.50x34 | NC2.50x38 |
| 2.75 | NC2.75x10 | NC2.75x14 | NC2.75x18 | NC2.75x22 | NC2.75x26 | NC2.75x30 | NC2.75x34 | NC2.75x38 |
| 3.00 | NC3.00x10 | NC3.00x14 | NC3.00x18 | NC3.00x22 | NC3.00x26 | NC3.00x30 | NC3.00x34 | NC3.00x38 |
| 3.25 | NC3.25x10 | NC3.25x14 | NC3.25x18 | NC3.25x22 | NC3.25x26 | NC3.25x30 | NC3.25x34 | NC3.25x38 |
| 3.50 | NC3.50x10 | NC3.50x14 | NC3.50x18 | NC3.50x22 | NC3.50x26 | NC3.50x30 | NC3.50x34 | NC3.50x38 |
3.75 | NC3.75x10 | NC3.75x14 | NC3.75x18 | NC3.75x22 | NC3.75x26 | NC3.75x30 | NC3.75x34 | NC3.75x38 |
4.00 | NC4x10 | NC4.00x14 | NC4.00x18 | NC4.00x22 | NC4.00x26 | NC4.00x30 | NC4.00x34 | NC4.00x38 |
Technical Information
VexPander® NC PTCA Balloon Catheter | |
Platform | Rapid Exchange(Rx) |
Balloon Material | PA |
Marker Material | Platinum-Iridium |
Tip Length | 3±1mm |
Distal Shaft Diameter | 0.89±0.05mm |
Proximal Shaft Diameter | 0.67±0.05mm |
Compliance | Non-compliant |
Nominal Pressure(NP) | 10 atm |
Rated Burst Pressure(RBP) | 18 atm |
Catheter Shaft Length | 140±5 cm |
Maximum Guide Wire Compatibility | 0.014 inch |
Shelf Life | 24 months |
Tip Entry Profile | 0.018 inch |
Balloon Crossing Profile | Balloon Diameter (mm) 2.00-2.25 : 0.80mm 2.50-2.75 : 0.85mm 3.00-3.50 : 0.90mm 3.75 : 0.95mm 4.00 : 1.00mm |
Minimum Guiding Catheter ID | 6F |
Compliance Chart
Inflation Pressure (atm) | Balloon Diameter(mm，±10%) | ||||||||
2..00 | 2.25 | 2.50 | 2.75 | 3.00 | 3.25 | 3.50 | 3.75 | 4.00 | |
4 | 1.94 | 2.19 | 2.42 | 2.67 | 2.91 | 3.16 | 3.41 | 3.64 | 3.88 |
6 | 1.96 | 2.21 | 2.45 | 2.70 | 2.94 | 3.19 | 3.44 | 3.68 | 3.92 |
8 | 1.98 | 2.23 | 2.48 | 2.72 | 2.97 | 3.22 | 3.47 | 3.71 | 3.96 |
10 | 2.00 | 2.25 | 2.50 | 2.75 | 3.00 | 3.25 | 3.50 | 3.75 | 4.00 |
12 | 2.02 | 2.27 | 2.52 | 2.77 | 3.03 | 3.28 | 3.53 | 3.78 | 4.04 |
14 | 2.04 | 2.29 | 2.54 | 2.80 | 3.06 | 3.31 | 3.56 | 3.82 | 4.08 |
16 | 2.06 | 2.31 | 2.56 | 2.85 | 3.09 | 3.33 | 3.59 | 3.85 | 4.12 |
18 | 2.08 | 2.33 | 2.58 | 2.85 | 3.12 | 3.36 | 3.62 | 3.89 | 4.16 |
20 | 2.10 | 2.35 | 2.60 | 2.87 | 3.15 | 3.39 | 3.65 | 3.92 | 4.20 |
| 22 | 2.12 | 2.37 | 2.62 | 2.90 | 3.18 | 3.41 | 3.68 | 3.96 | 4.24 |
| 24 | 2.14 | 2.39 | 2.64 | 2.92 | 3.21 | 3.44 | 3.71 | 3.99 | 4.28 |
Nominal Pressure(NP) | Rated Burst Pressure(RBP) | ||||||||
