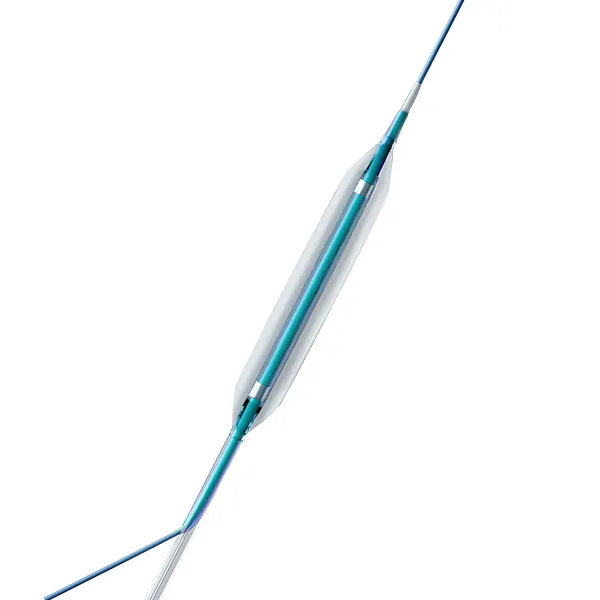

VesPenetrator® CTO PTCA Balloon Catheter.
Brand: VesPenetrator®
Certification: CE
Service type: ODM/OEM
Supply capacity: 5000/M
VesPenetrator® CTO PTCA Balloon Catheter are designed for PCI procedure to widen narrowed or obstructed arteries, typically to treat arterial atherosclerosis.
VesPenetrator® CTO PTCA Balloon Catheter, is passed over a wire into the narrowe locations and then inflated to a fixed size.
The balloon forces expansion of occlusive vessel, opening up the blood vessel for
improved flow, and the balloon is then deflated and withdrawn.
VesPenetrator® CTO PTCA Balloon Catheter are designed for PCI procedure to widen narrowed or obstructed arteries, typically to treat arterial atherosclerosis.
VesPenetrator® CTO PTCA Balloon Catheter, is passed over a wire into the narrowe locations and then inflated to afixed size. The balloon forces expansion of occlusive vessel, opening up the blood vessel for improved flow, and the balloon is then deflated and withdrawn.
VexPander® Design Features
Non-compliant Balloon Catheter: Specificallydesignedfor crossing complex lesionsand Chronic Total Occlusions (CTO)

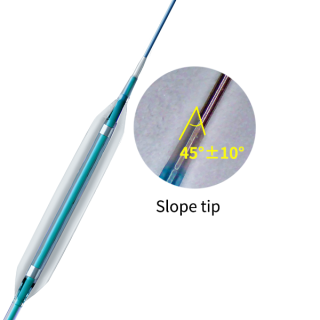

Excellent Crossability: Uniquetaper/slope-tip design, easy penetrating the ChronicTotalOcclusive Vessel.
Great Trace/Travelability: Thin wall balloon with clear marker band--lowest profile and easy traveling.
Precision Expansion: Wide Range of Sizes:0.75 mmfor greater flexibility. Precision controlled balloon complianceand length expansion.
Maximum Pushability/Deliverability: TranSmooth"" design makes the device having maximum pushability in most torque vessel.
Order Information
40 Sizes Available | 0.75 – 1.75 mm Diameters | 10 – 38 mm Lengths
VesPenetrator® CTO PTCA Balloon Catheter | ||||||||
Balloon Diameter (mm) | Balloon Length（mm） | |||||||
10 | 14 | 18 | 22 | 26 | 30 | 34 | 38 | |
0.75 | PD0.75x10 | PD0.75x14 | PD0.75x18 | PD0.75x22 | PD0.75x26 | PD0.75x30 | PD0.75x34 | PD0.75x38 |
1.00 | PD1.00x10 | PD1.00x14 | PD1.00x18 | PD1.00x22 | PD1.00x26 | PD1.00x30 | PD1.00x34 | PD1.00x38 |
1.25 | PD1.25x10 | PD1.25x14 | PD1.25x18 | PD1.25x22 | PD1.25x26 | PD1.25x30 | PD1.25x34 | PD1.25x38 |
1.50 | PD1.50x10 | PD1.50x14 | PD1.50x18 | PD1.50x22 | PD1.50x26 | PD1.50x30 | PD1.50x34 | PD1.50x38 |
1.75 | PD1.75x10 | PD1.75x14 | PD1.75x18 | PD1.75x22 | PD1.75x26 | PD1.75x30 | PD1.75x34 | PD1.75x38 |
Technical Information
VesPenetrator® CTO PTCA Balloon Catheter | |
Platform | Rapid Exchange(Rx) |
Balloon Material | PA |
Marker Material | Platinum-Iridium |
Tip Length | 3±1mm |
Distal Shaft Diameter | 0.75/0.89±0.05mm |
Proximal Shaft Diameter | 0.60±0.05mm |
Compliance | Semi-compliant |
Nominal Pressure(NP) | 8 atm |
Rated Burst Pressure(RBP) | 16 atm |
Catheter Shaft Length | 140±5 cm |
Maximum Guide Wire Compatibility | 0.014 inch |
Shelf Life | 24 months |
Tip Entry Profile | 0.016 inch |
Balloon Crossing Profile | Balloon Diameter (mm) 0.75-1.25 : 0.70mm(±0.05) 1.50-1.75 : 0.75mm (±0.05) |
Minimum Guiding Catheter ID | 6F/5F |
Compliance Chart
Inflation Pressure (atm) | Balloon Diameter(mm，±10%) | |||
1.00 | 1.25 | 1.50 | 2.00 | |
2 | 0.97 | 1.22 | 1.40 | 1.62 |
4 | 0.98 | 1.23 | 1.44 | 1.67 |
6 | 0.99 | 1.24 | 1.47 | 1.71 |
8 | 1.00 | 1.25 | 1.50 | 1.75 |
10 | 1.01 | 1.27 | 1.53 | 1.79 |
12 | 1.02 | 1.29 | 1.56 | 1.83 |
14 | 1.03 | 1.30 | 1.59 | 1.87 |
16 | 1.04 | 1.31 | 1.61 | 1.90 |
18 | 1.05 | 1.32 | 1.63 | 1.93 |
Nominal Pressure(NP) | Rated Burst Pressure(RBP) | |||
