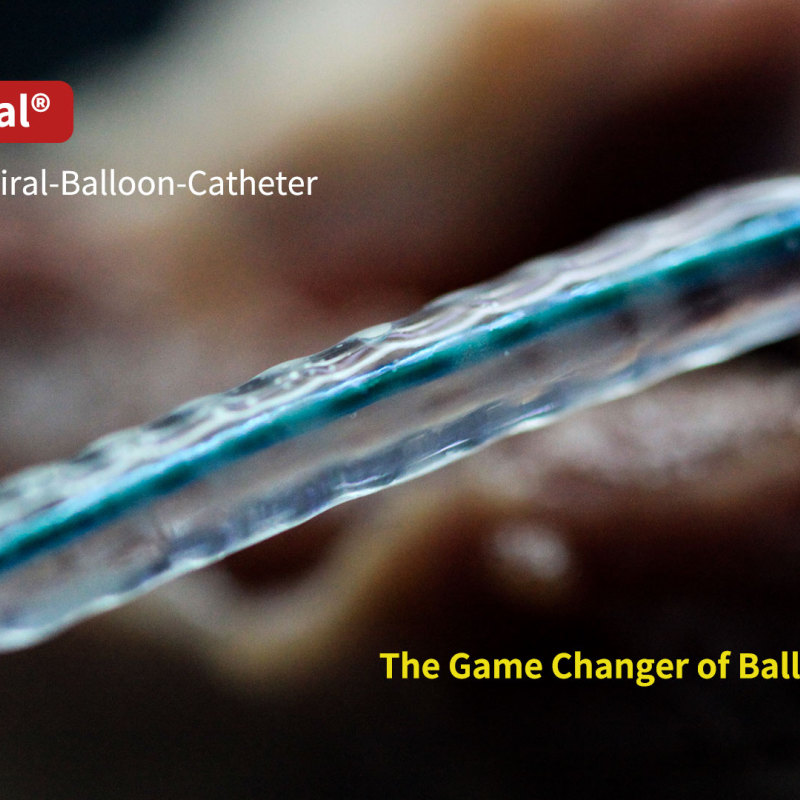

VesSpiral® Coronary Spiral Balloon Catheter.
Brand: VesSpiral®
Certification: NA
Service type: ODM/OEM
Supply capacity: 1000PCS
The VesSpiral® Coronary Dilatation Balloon Catheters are indicated for: Balloon dilatation of the stenotic portion of a coronary artery or bypass graft stenosis in patients evidencing coronary ischemia for the purpose of improving myocardial perfusion Balloon dilatation of a coronary artery occlusion for the treatment of acute myocardial infarction.
The VesSpiral® Coronary Dilatation Balloon Catheters are indicated for:
Balloon dilatation of the stenotic portion of a coronary artery or bypass graft stenosis in patients evidencing coronary ischemia for the purpose of improving myocardial perfusion Balloon dilatation of a coronary artery occlusion for the treatment of acute myocardial infarction.
VesSpiral® Balloons Features
- Integrated anti-slip spiral components
- Programed dilation for enhanced safety
- Low profile for easy crossing
- Enhanced drug delivery & transfer
Technical Information
| VesSpiral® Coronary Dilatation Balloon Catheter | |
| Platform | Rapid Exchange(Rx) |
| Balloon Material | PA |
| Marker Material | Platinum-Iridium |
| Tip Length | 3±1mm |
| Distal Shaft Diameter | |
| Proximal Shaft Diameter | |
| Compliance | Non-compliant |
| Nominal Pressure(NP) | 10 atm |
| Rated Burst Pressure(RBP) | 22 atm |
| Catheter Shaft Length | 140±5 cm |
| Maximum Guide Wire Compatibility | 0.014 inch |
| Shelf Life | 24 months |
| Tip Entry Profile | 0.014 inch |
| Balloon Crossing Profile | Balloon Diameter (mm) 2.00-2.25 : 0.95 2.50-2.75 ：1.00 3.00-3.50 ：1.05 3.75-4.00 ：1.10 |
| Minimum Guiding Catheter ID | 6F |
Order Information
72 Sizes Available | 2.00 – 4.00 mm Diameters | 10 – 38 mm Lengths
| VesSpiral® Coronary Dilatation Balloon Catheter | ||||||
| Balloon Diameter (mm) | Balloon Length (mm) | |||||
| 10 | 14 | 18 | 22 | 26 | 30 | |
| 2.00 | VSP20010 | VSP20014 | VSP20018 | VSP20022 | VSP20026 | VSP20030 |
| 2.25 | VSP22510 | VSP22514 | VSP22518 | VSP22522 | VSP22526 | VSP22530 |
| 2.50 | VSP25010 | VSP25014 | VSP25018 | VSP25022 | VSP25026 | VSP25030 |
| 2.75 | VSP27510 | VSP27514 | VSP27518 | VSP27522 | VSP27526 | VSP27530 |
| 3.00 | VSP30010 | VSP30014 | VSP30018 | VSP30022 | VSP30026 | VSP30030 |
| 3.25 | VSP32510 | VSP32514 | VSP32518 | VSP32522 | VSP32526 | VSP32530 |
| 3.50 | VSP35010 | VSP35014 | VSP35018 | VSP35022 | VSP35026 | VSP35030 |
| 3.75 | VSP37510 | VSP37514 | VSP37518 | VSP37522 | VSP37526 | VSP37530 |
| 4.00 | VSP40010 | VSP40014 | VSP40018 | VSP40022 | VSP40026 | VSP40030 |
Compliance Chart
| Inflation Pressure (atm) | Balloon Diameter (mm，±10%) | ||||||||
| 2.00 | 2.25 | 2.50 | 2.75 | 3.00 | 3.25 | 3.50 | 3.75 | 4.00 | |
| 6 | 1.88 | 2.13 | 2.34 | 2.61 | 2.81 | 3.07 | 3.32 | 3.59 | 3.81 |
| 8 | 1.95 | 2.19 | 2.41 | 2.68 | 2.91 | 3.16 | 3.41 | 3.68 | 3.91 |
| 10 | 2.00 | 2.25 | 2.50 | 2.75 | 3.00 | 3.25 | 3.50 | 3.75 | 4.00 |
| 12 | 2.05 | 2.31 | 2.56 | 2.81 | 3.06 | 3.31 | 3.56 | 3.82 | 4.08 |
| 14 | 2.12 | 2.37 | 2.62 | 2.87 | 3.12 | 3.37 | 3.62 | 3.89 | 4.16 |
| 16 | 2.17 | 2.43 | 2.68 | 2.93 | 3.18 | 3.43 | 3.68 | 3.96 | 4.24 |
| 18 | 2.20 | 2.48 | 2.74 | 2.98 | 3.24 | 3.43 | 3.74 | 4.01 | 4.30 |
| 20 | 2.24 | 2.52 | 2.78 | 3.03 | 3.29 | 3.55 | 3.80 | 4.05 | 4.36 |
| 22 | 2.26 | 2.57 | 2.82 | 3.08 | 3.32 | 3.61 | 3.84 | 4.11 | 4.42 |
| 24 | 2.28 | 2.59 | 2.86 | 3.13 | 3.36 | 3.66 | 3.86 | 4.24 | 4.55 |
| Nominal Pressure(NP) | Rated Burst Pressure(RBP) | ||||||||
