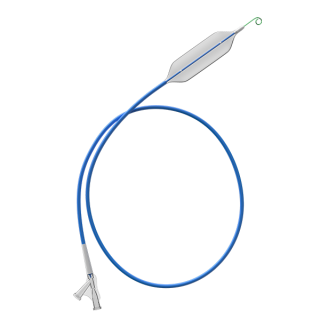

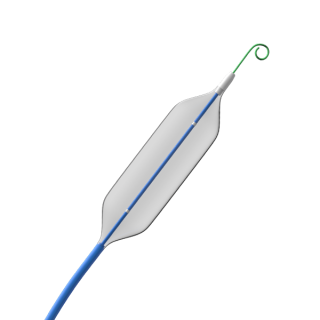

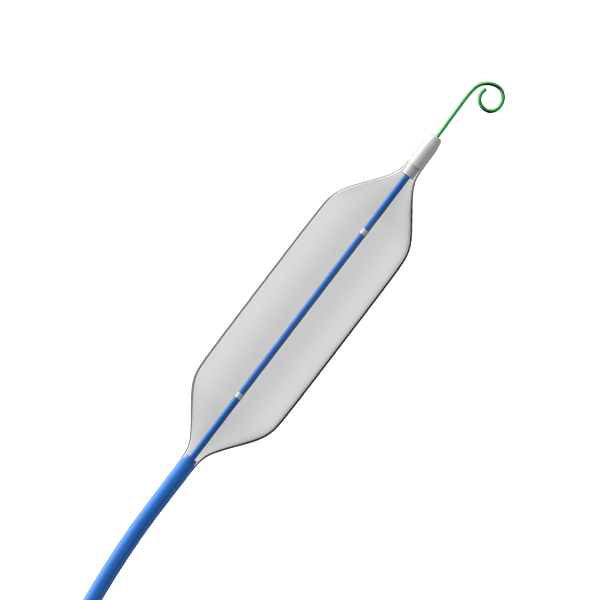

ValvuloPro® Valvuloplasty Balloon Catheter
Brand: ValvuloPro®
Certification: FDA
Service type: OEM
Supply capacity: 1000PCS
The ValvuloPro® Valvuloplasty Balloon Catheters is indicated for Percutaneous Transluminal Valvuloplasty (PTV), Balloon Aortic Valvuloplasty (BAV), and specifically pre-dilatation of aortic stenosis prior to Transcatheter Aortic Valve lmplantation or Replacement procedures (TAVI/TAVR).
ValvuloPro® Valvuloplasty Balloon Catheters are indicated for balloon aortic vavuloplasty. It consists of an inflatable balloon on a catheter shaft with multiple lumens for inflation.
ValvuloPro® Design Features
Semi-compliant high pressure balloon engineered for resistant stenosis & anti-perforation
Coaxially constructed catheter body with minimized profile and pushability, providing outstanding tractability.
Maximally optimized balloon and catheters combination with extremely fast inflation and deflation times (less than 10S) for a quick procedure.
Soft and low profile tip for easy and atraumatic access.
Radiopaque Maker bands for precision balloon placement.
Order Information
6 Sizes Available | 15 – 29 mm Diameters | 40 mm Length
ValvuloPro® Balloon Catheter | ||||
Number Reference | Inflated Balloon Diameter (mm) | Balloon Length(mm) | Dilatation Pressure(ATM) | RBP(ATM) |
VBC1540 | 15 | 40 | 3 | 6 |
VBC1840 | 18 | 40 | 3 | 6 |
VBC2140 | 21 | 40 | 3 | 6 |
VBC2340 | 23 | 40 | 3 | 6 |
VBC2640 | 26 | 40 | 3 | 6 |
VBC2940 | 29 | 40 | 3 | 6 |
Compliance Chart
Inflation Pressure (atm) | Balloon Diameter（mm，±10%) | |||||
15 | 18 | 21 | 23 | 26 | 29 | |
2 | 14.11 | 17.5 | 20.44 | 22.54 | 25.36 | 28.28 |
3 | 15.00 | 18.00 | 21.00 | 23.00 | 26.00 | 29.00 |
4 | 15.08 | 18.24 | 21.35 | 23.49 | 26.43 | 29.67 |
5 | 15.36 | 18.54 | 21.63 | 23.65 | 26.84 | 30.15 |
6 | 15.55 | 18.86 | 21.87 | 23.95 | 27.09 | 30.52 |
Nominal Pressure(NP) | Rated Burst Pressure(RBP) | |||||
