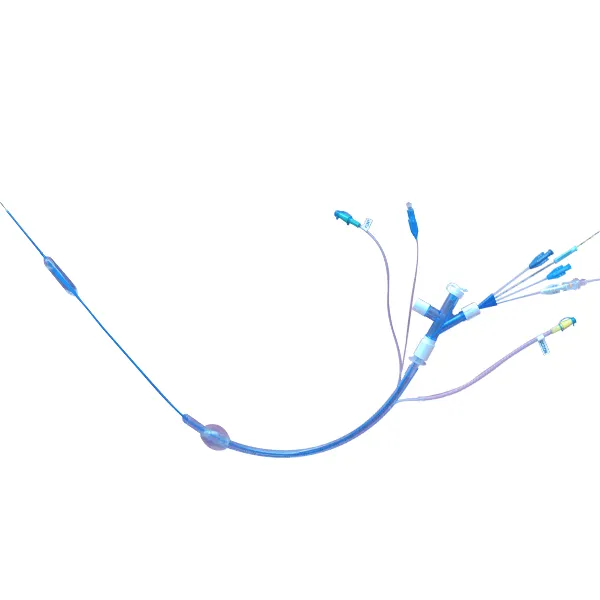

Pulmonary High Pressure Balloon Catheter
Brand: Pulmonary-high-pressure-balloon-catheter
Certification: NA
Service type: ODM/OEM
Supply capacity: 1000PCS
Pulmonary High Pressure Balloon Catheter
*High Pressure ;
*Long or Short indwelled;
*Ventilator Compatibility;
*Alveolus Infusion/Aspiration;

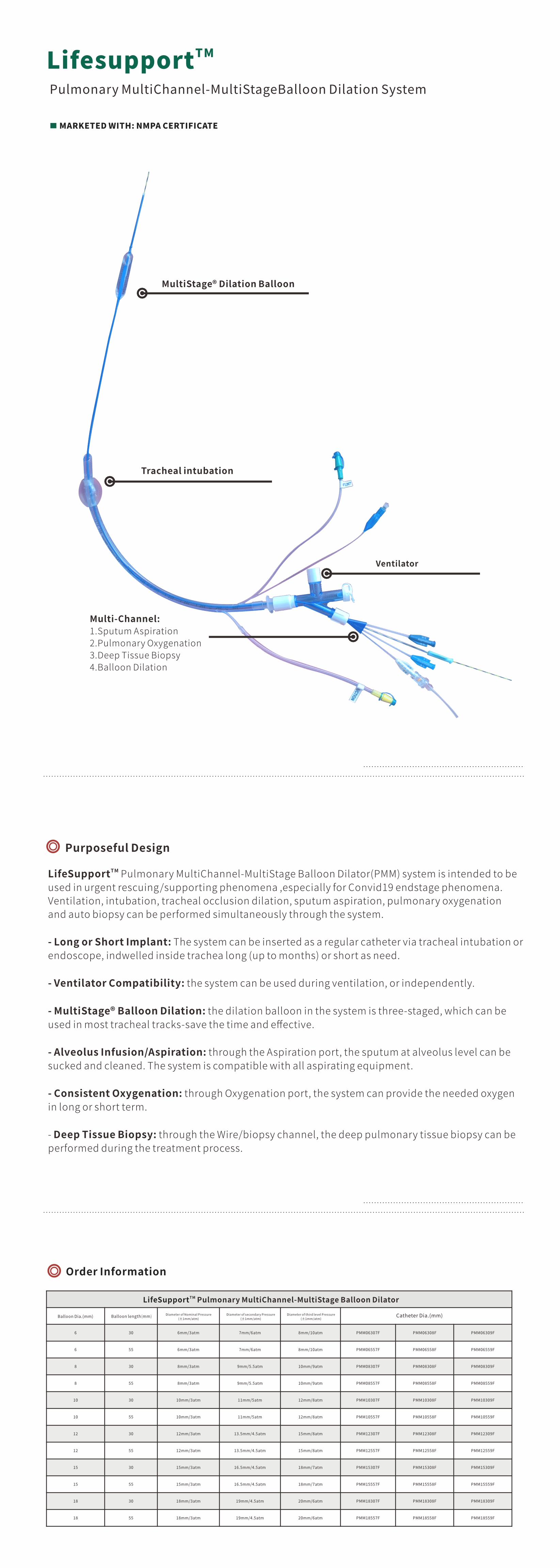

Pulmonary High Pressure Balloon Catheter
Pulmonary High Pressure Balloon Catheter is intended to be used in urgent rescuing/supporting phenomena ,especially for Convid-19 end-stage phenomena. Ventilation, tracheal intubation, tracheal occlusion dilation, sputum aspiration, pulmonary oxygenation and auto biopsy can be performed simultaneously through the system.
Advantage
- High Pressure resistant;
- Long-or short Insert: The system would be inserted as a regular catheter through tracheal intubation or endoscope, indwelled inside trachea long (up to months) or short as need;
- Ventilator Compatibility: the system can be used during ventilation, or independently;
- MultiStage® Balloon Dilation: the dilation balloon in the system is three-staged, which can be used in most tracheal tracks—save the time and effective;
- Alveolus Infusion/Aspiration: through the Aspiration port, the sputum at Alveolus level can be sucked and cleaned. The system is compatible with all aspirating equipment;
- Consistent Oxygenation: through Oxygenation port, the system can provide the needed oxygen in long or short term;
- Deep Tissue Biopsy: through wire/biopsy channel, the deep pulmonary tissue biopsy can be performed during the treatment process;
Order Information (OEM only):
Pulmonary High Pressure Balloon Catheter | ||||
Number Reference | Inflated Balloon Diameter(mm) | Balloon Length(mm) | Dilation Pressure(ATM) | RBP (ATM) |
PMM7F | 6-7-8 | 30 | 3-6-10 | >12 |
8-9-10 | 30 | 3-5.5-9 | >11 | |
10-11-12 | 30 | 3-5-8 | >10 | |
PMM9F | 12-13.5-15 | 55 | 3-4.5-8 | >10 |
15-16-18 | 55 | 3-4.5-8 | >9 | |
18-19-20 | 55 | 3-4.5-7 | >8 | |
