EverFlow® Paclitaxel Coated PTCA Balloon Catheter
Brand: TT MEDICAL
Certification: CE
Service type: ODM/OEM
Supply capacity: 5000PCS /Month
EverFlow® is a Paclitaxel-coated Rapid Exchange PTCA Balloon Catheter with a drug releasing balloon system for the treatment of coronary vessels. EverFlow® is designed to improve the lumen diameter and to reduce restenosis in the treatment of lesions in native coronary arteries.
EverFlow® is a Paclitaxel-coated Rapid Exchange PTCA Balloon Catheter with a drug releasing balloon system for the treatment of coronary vessels. EverFlow® is designed to improve the lumen diameter and to reduce restenosis in the treatment of lesions in native coronary arteries.
EverFlow® can be used as an alternative to a conventional non-coated balloon.

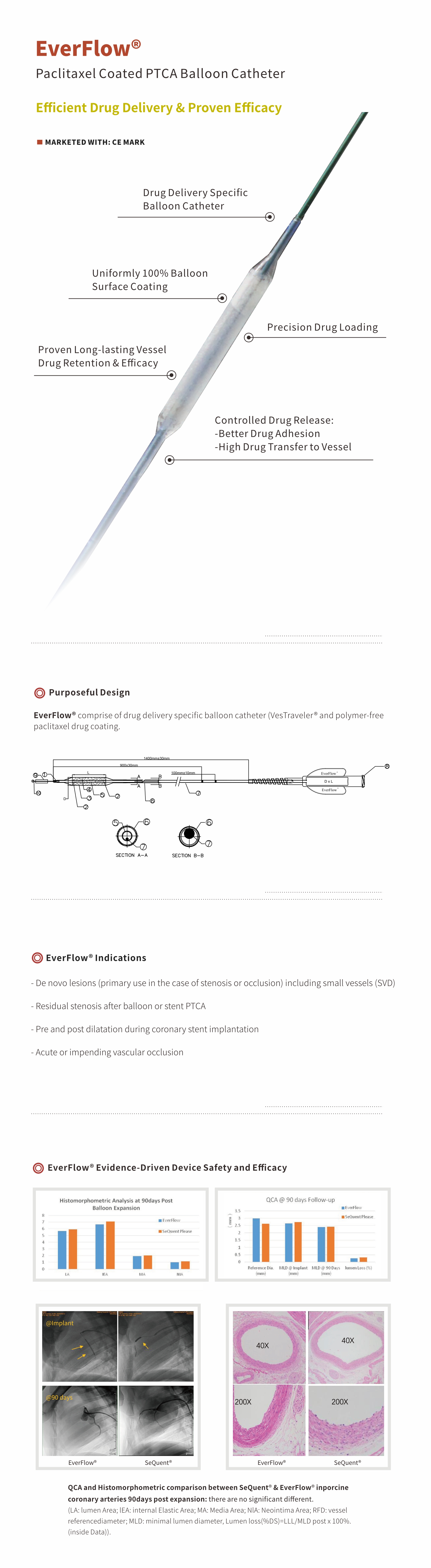

EverFlow® Design Features
- Drug Delivery Specific Balloon Catheter(VesTraveler®): designed specifically for drug and stent delivery with features of semi-compliant, excellent crossability and precision balloon expansion.
- Special HighBind® Coating Technology: Uniformly 100% surface coating, precision drug loading and controlled drug release profile.
- Evidence-driven of Medicine: minimum drug loss during delivery and controlled release profile during balloon expansion.
- Proven Long-last vessel drug retention and efficacy: effective drug dose remain in vessel up to 30days post balloon expansion.
Technical Information
| EverFlow® Paclitaxel-Coated PTCA Balloon Catheter | |
| Platform | Rapid Exchange(Rx) |
| Balloon Material | PA |
| Marker Material | Platinum-Iridium |
| Tip Length | 3±1mm |
| Distal Shaft Diameter | 0.89±0.05mm |
| Proximal Shaft Diameter | 0.67±0.05mm |
| Compliance | Semi-compliant |
| Nominal Pressure(NP) | 8 atm |
| Rated Burst Pressure(RBP) | 16 atm |
| Catheter Shaft Length | 140±5 cm |
| Maximum Guide Wire Compatibility | 0.014 inch |
| Shelf Life | 24 months |
| Tip Entry Profile | 0.018 inch |
Balloon Crossing Profile | Balloon Diameter (mm) 2.00-2.25: 0.80mm 2.50-2.75: 0.85mm 3.00-3.50: 0.90mm 3.75: 0.95mm 4.00: 1.00mm |
| Minimum Guiding Catheter ID | 6F |
Order Information
72 Sizes Available | 2.00 – 4.00 mm Diameters | 10 – 38 mm Lengths
| EverFlow® Paclitaxel-Coated PTCA Balloon Catheter | ||||||||
| Balloon Diameter (mm) | Balloon Length (mm) | |||||||
| 10 | 14 | 18 | 22 | 26 | 30 | 34 | 38 | |
| 2.00 | 2.00x10 | 2.00x14 | 2.00x18 | 2.00x22 | 2.00x26 | 2.00x30 | 2.00x34 | 2.00x38 |
| 2.25 | 2.25x10 | 2.25x14 | 2.25x18 | 2.25x22 | 2.25x26 | 2.25x30 | 2.25x34 | 2.25x38 |
| 2.50 | 2.50x10 | 2.50x14 | 2.50x18 | 2.50x22 | 2.50x26 | 2.50x30 | 2.50x34 | 2.50x38 |
| 2.75 | 2.75x10 | 2.75x14 | 2.75x18 | 2.75x22 | 2.75x26 | 2.75x30 | 2.75x34 | 2.75x38 |
| 3.00 | 3.00x10 | 3.00x14 | 3.00x18 | 3.00x22 | 3.00x26 | 3.00x30 | 3.00x34 | 3.00x38 |
| 3.25 | 3.25x10 | 3.25x14 | 3.25x18 | 3.25x22 | 3.25x26 | 3.25x30 | 3.25x34 | 3.25x38 |
| 3.50 | 3.50x10 | 3.50x14 | 3.50x18 | 3.50x22 | 3.50x26 | 3.50x30 | 3.50x34 | 3.50x38 |
| 3.75 | 3.75x10 | 3.75x14 | 3.75x18 | 3.75x22 | 3.75x26 | 3.75x30 | 3.75x34 | 3.75x38 |
| 4.00 | 4.00x10 | 4.00x14 | 4.00x18 | 4.00x22 | 4.00x26 | 4.00x30 | 4.00x34 | 4.00x38 |
Compliance Chart
| Inflation Pressure (atm) | Balloon Diameter (mm，±10%) | ||||||||
| 2.00 | 2.25 | 2.50 | 2.75 | 3.00 | 3.25 | 3.50 | 3.75 | 4.00 | |
| 2 | 1.71 | 1.96 | 2.21 | 2.46 | 2.71 | 2.96 | 3.21 | 3.46 | 3.71 |
| 4 | 1.81 | 2.06 | 2.31 | 2.56 | 2.81 | 3.06 | 3.31 | 3.56 | 3.81 |
| 6 | 1.91 | 2.16 | 2.41 | 2.66 | 2.91 | 3.16 | 3.41 | 3.66 | 3.91 |
| 8 | 2.00 | 2.25 | 2.50 | 2.75 | 3.00 | 3.25 | 3.50 | 3.75 | 4.00 |
| 10 | 2.06 | 2.31 | 2.56 | 2.81 | 3.06 | 3.31 | 3.56 | 3.78 | 4.08 |
| 12 | 2.12 | 2.37 | 2.62 | 2.87 | 3.12 | 3.37 | 3.62 | 3.89 | 4.16 |
| 14 | 2.18 | 2.43 | 2.68 | 2.93 | 3.18 | 3.43 | 3.68 | 3.96 | 4.24 |
| 16 | 2.24 | 2.49 | 2.74 | 2.99 | 3.24 | 3.49 | 3.74 | 4.02 | 4.30 |
| 18 | 2.27 | 2.52 | 2.78 | 3.03 | 3.29 | 3.55 | 3.80 | 4.08 | 4.36 |
| Nominal Pressure(NP) | Rated Burst Pressure(RBP) | ||||||||
